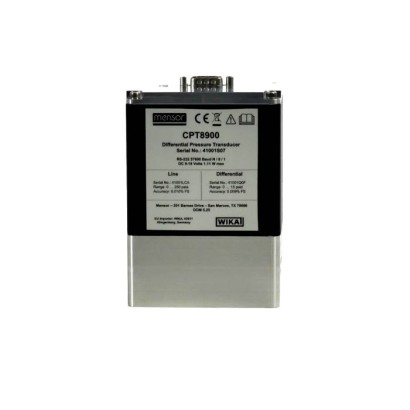

High Accuracy Differential Pressure Transducer
Applications
- Pressure calibration
- High accuracy pressure monitoring
- Pressure sensing in critical applications
- Aerospace
Special Features
- Static line range: 0 ... 5 to 250 psi [0 ... 0.34 to 17 bar]
- Static accuracy: up to 0.008% IS-33
- Differential range: ±0.18 to -15 ... 1500 psid [±12.5 mbar to -1 ... 100 bar d]
- Differential accuracy: up to 0.01% FS
- Static line pressure effects included in accuracy statement
- Temperature compensation: 0 to 50�C
- USB, RS-232, or RS-485 communication
- Two year warranty
Description
Overview
The model CPT8900 High Accuracy Differential Pressure Transducer is designed to excel in performance in differential pressure measurements. Advancements in pressure sensor technology and sensor characterization are heavily leveraged to fulfill the needs of a demanding market. With static accuracies up to 0.008% IS-33, differential accuracies at 0.03% FS or better, and compensations for static line pressure effects across the entire static range, the CPT8900 stands alone in performance and value in the high accuracy differential pressure transducer market.
Application
The CPT8900 High Accuracy Differential Pressure Transducer is ideal for OEM instruments that require a high accuracy pressure transducer. Examples are: flow calibrators, humidity calibrators, pressure controllers, aerospace wind tunnel calibration, automotive sensor testing, hydrology, oceanography, in the aviation and space industries, or wherever high accuracy differential pressure measurement and longterm calibration stability are valued.
Functions
The model CPT8900 High Accuracy Differential Pressure Transducer has a USB, RS-232, or RS-485 interface. The RS-485 interface offers multi-drop capability with simple cabling. The CPT8900 has five different baud rates to choose from.
This transducer can be configured with customizable combinations of static line ranges and differential ranges to fit your specific application. With a recalibration time of 365 days and a high resolution of 8 significant figures, the CPT9000 is flexible enough to be used in a wide variety of applications.
Design
The CPT8900 High Accuracy Differential Pressure Transducer features dual-sensor technology, provides a true differential measurement while also allowing you to measure the static line pressure with our premium accuracies. It’s sturdy and robust design can be easily integrated to fit your application. Standard fittings are easily changed using the SAE 7/16-20 female connections.
