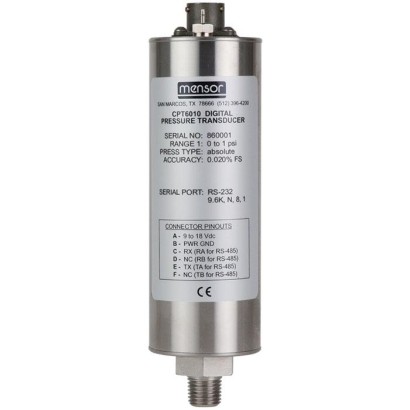

The CPT6010 Digital Pressure Transducer is a self-contained pressure sensing device that provides high accuracy pressure measurements in both the single and dual calibration models. This transducer incorporates a low hysteresis silicon sensor with electronically compensated pressure linearity over the specified temperature range.
The CPT6010 Digital Pressure Transducer is characterized over the full pressure and temperature range to achieve 0.020% FS uncertainty. This uncertainty specification includes linearity, hysteresis, repeatability and temperature errors. Also featured is an output which is updated at a rate of 50 readings per second (20 ms).
The CPT6010 is used in OEM Applications where a high accuracy pressure transducer is required. It can also be used as a transfer standard or in pressure calibration and testing areas of production facilities.
The CPT6010 Digital Pressure Transducer is a high accuracy pressure measurement component that uses either RS-232 or RS-485 to communicate with a host computer over long distances. Any MS-DOS compatible PC with an available serial output port can serve as the host controller.
System designers will appreciate the flexibility offered by having highly accurate pressure transducers that are not tied to a front panel and which may be located remotely. For remote operation the Digital Pressure Transducer is equipped with RS-485 can be located up to 4,000 feet from the host. A simple cable can accommodate both the power and the two-way communications requirements.
